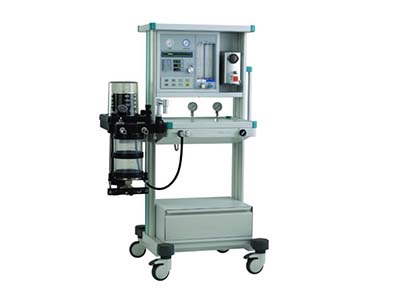

Anaesthesia Machine AEON 7400

Category:

Description

Product Description

  • Anesthesia Machine
  • Volume control and manual mode
  • For adult and paediatric
  • LED display
  • Alloy frame are featured by its light weight, high precision
  • High quality vaporizer
  • Low resistance, compact absorber system
  • Special designed bellows joint for easy installation
  • Gas flow control system with inter-lock device
  • High reliability and durability

Main Unit

  • Mode: Semi-open, semi-closed or closed system
  • Gas supply: O2/N2O, Pressure: 0.3 to 0.5 MPa
  • Flowmeter: O2/N2O four-tube flowmeter 0 to 10 L/min (With inter-lock protection device ensuring the oxygen concentration > 25 %)
  • O2flush: 35 to 75 L/min
  • O2deficiency: Audible alarm for at least 7 seconds when the O2 supply down

MV200B Ventilator>

  • Patient type: Adult, Paediatric
  • Driven mode: Pneumatically driven electronically controlled
  • Display mode: LED display
  • Ventilation mode: Volume, Manual
  • Tidal volume: 0 to 1500 ml
  • Breath rate: 6 to 60 bpm
  • I: E ratio: 2: 1 to 1: 4
  • High pressure: 20 to 60 cmH2O
  • Low pressure: 0 to 20 cmH2O
  • Alarm silence: ≤120 seconds
  • Monitoring: Tidal volume, Breath rate, Airway pressure
  • Alarm: High airway pressure, Low airway pressure, AC power failure
  • Safety valve: ≤6 kPa

VP200 Vaporizer

  • Capacity: 120 ml (Max. )
  • Dry wick Volume: 20 ml
  • Flow range: 0.2 to 15 L/min
  • Concentration: 0 to 5.0%
  • Work Temp.: 15 to 35
  • Storage Temp.: – 40 to 70
  • Dimension: 155 mm*94 mm*189 mm(D*W*H)
  • Weight: 5 kg

Operation Environment

  • Power supply: 110 to 240 V; 50 to 60 Hz
  • Power consumption: ≤50 VA
  • Operation Temp.: 10 to 40
  • Storage Temp.: – 10 to 55
  • Humidity: ≤ 93%
  • Dimension and Weight
  • Dimension: 620 mm*890 mm*1335 mm(D*W*H)
  • Weight: 75 kg
